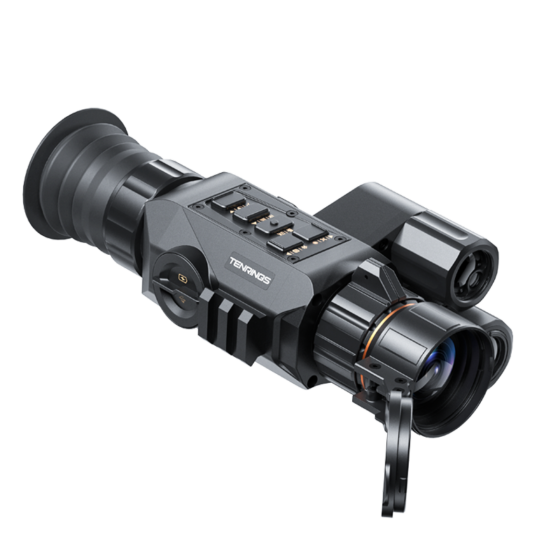

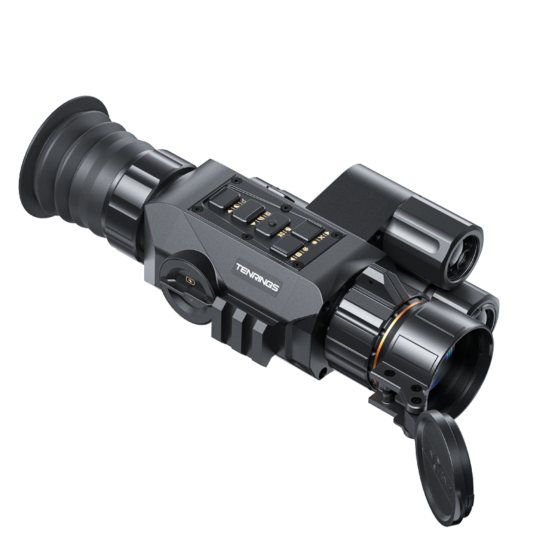

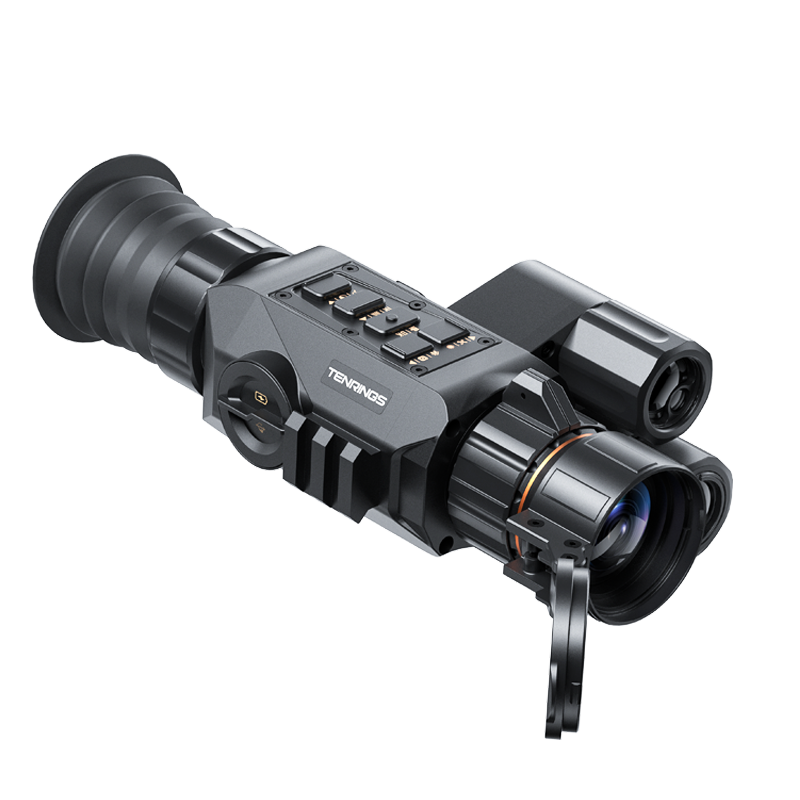

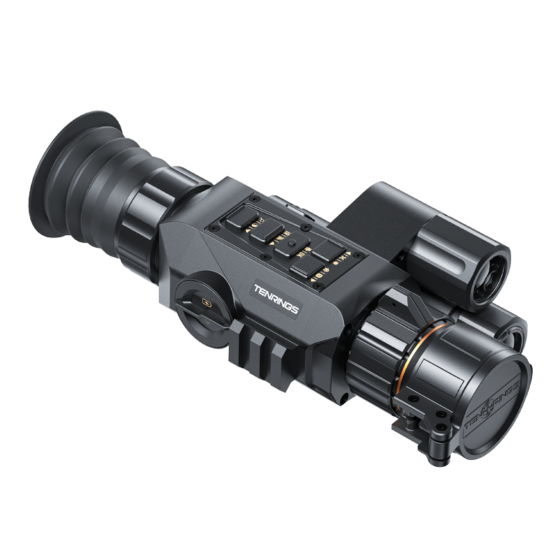

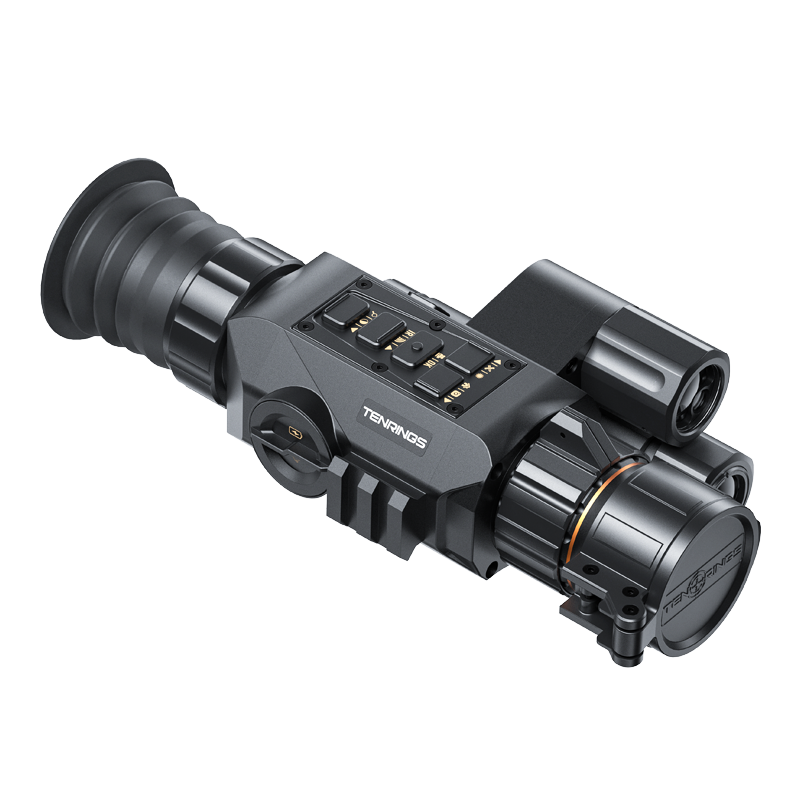

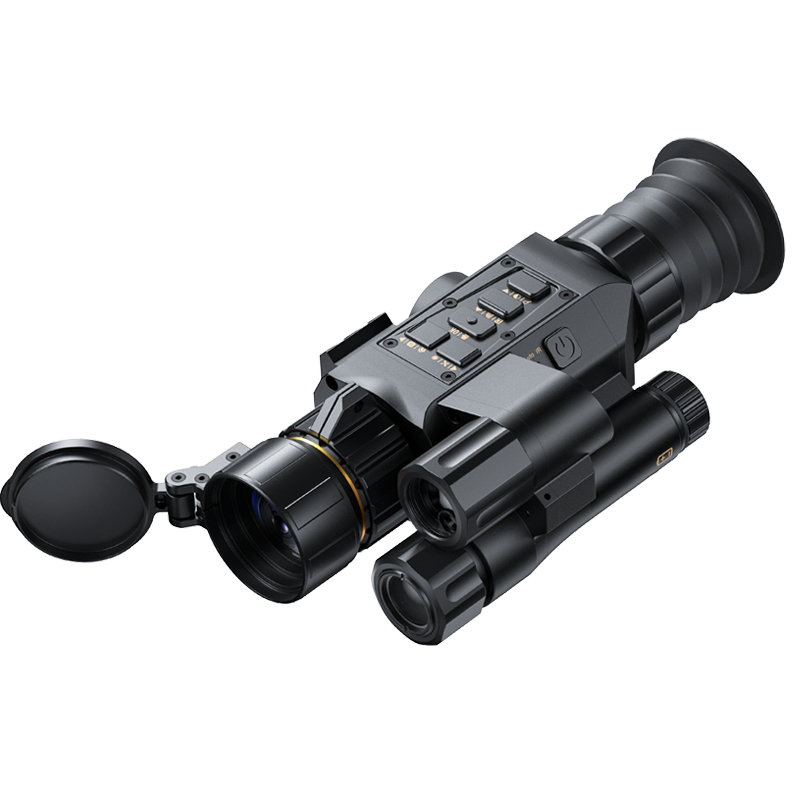

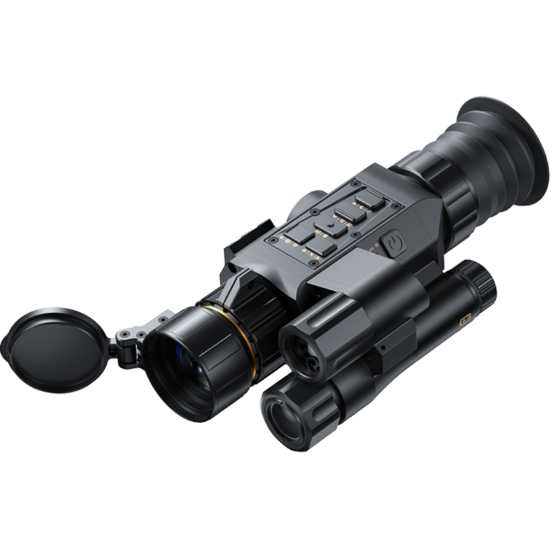

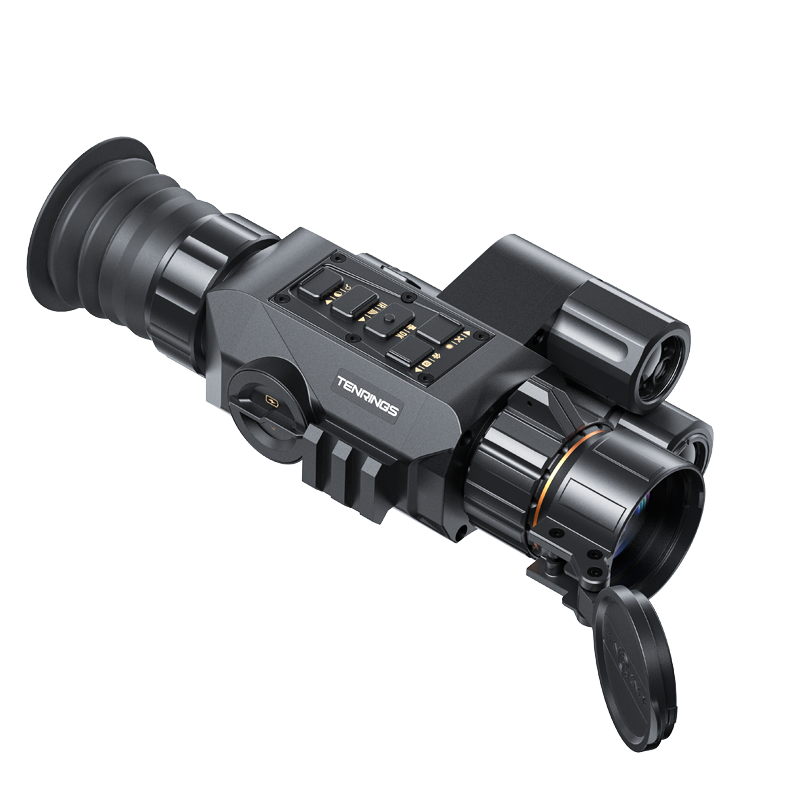

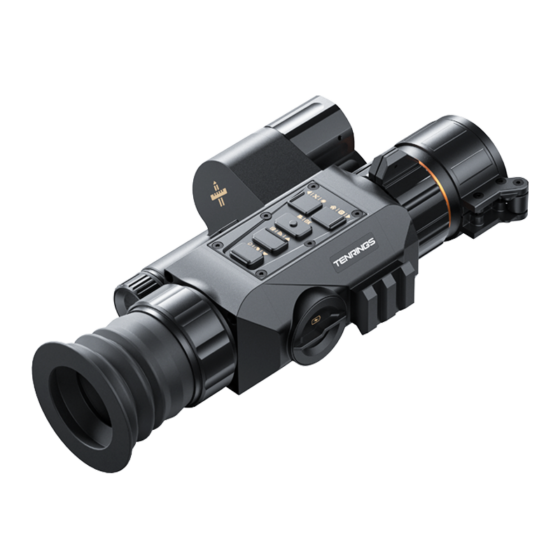

TR-IR-LRF NV501
Login to see price.
- Lightweight and compact design
- In a completely dark environment, the farthest observation distance can reach 300 meters
- Built-in WiFi for downloading and sharing files on Android or IOS smartphones or tablets
- 1024×768 high-resolution display provides clear, rich and vivid color images
- Powered by one18650ย 3.7V Li-ion batteryย for long continuous operation
- 1-5x image magnification, flexible selection according to distance
- Built-in IR-CUT two-color filter to restore the real image of day and night
- With infrared laser ranging function, the longest distance can reach 1000 meters
- Built-in high-brightness, low-power dimmable IR illuminator, which can clearly restore the subject in the dark scene
- The infrared lens is not easy to react with metal oxides, acidic substances, air and water, and has good light transmission performance
Features:
โข Lightweight and compact design
โข In a completely dark environment, the farthest observation distance can reach 300 meters
โข Built-in WiFi for downloading and sharing files on Android or IOS smartphones or tablets
โข 1024×768 high-resolution display provides clear, rich and vivid color images
โข Powered by one 18650 3.7V Li-ion battery for long continuous operation
โข 1-5x image magnification, flexible selection according to distance
โข Built-in IR-CUT two-color filter to restore the real image of day and night
โข With infrared laser ranging function, the longest distance can reach 1000 meters
โข Built-in high-brightness, low-power dimmable IR illuminator, which can clearly restore the subject in the dark scene
โข The infrared lens is not easy to react with metal oxides, acidic substances, air and water, and has good light transmission performance
Overview
TR-IR-LRF NV501 adopts low illumination at night, Sony dynamic CMOS sensor, external night vision device. You can obtain excellent observation results both day and night. The novel structure patent design greatly improves the observation effect and observation experience, and the built-in infrared color ๏ฌlter greatly improves the observation effect of the equipment during the day, reduces the overexposure under natural light and restores more realistically. The built-in light brightness detection sensor can automatically switch between day and night modes according to the light intensity of the environment. TR-IR-LRF NV501 integrates the laser ranging ๏ฌnder to accurately grasp the target distance while observing or shooting and the ranging distance can reach 1000m.
TR-IR-LRF NV501 strengthens the waterproof design and reaches the protection level of IP67. Using a single built-in rechargeable battery with a low power consumption design, the model can continuously work up to 8 hours. In addition, it has advanced fast start-up performance, fast imaging in 3 seconds after booting, which signi๏ฌcantly improves the user’s quick response ability. The high refresh rate design enables the users to observe fast-moving targets effectively. At the same time, equipped with high-quality and high-performance objective lens, it ensures safety and reliability without fear of strong light. When installed on a tripod for long-distance night observation, the night observation distance can reach 300 meters, and it can be connected to cameras, video cameras, and wireless image transmission equipment. At the same time, it integrates the ranging function, and realizes the accurate grasp of the target distance while observing.
TR-IR-LRF NV501 is designed with a 3.5-17.5x(5x)35mm digital ri๏ฌe scope, equipped with a detachable 905nm infrared range๏ฌnder module, which can provide accurate testing of the target distance. The built-in WiFi module allows users to record and share videos, and comes with a Type-C interface for external power supply and data copying at the same time. It supports video recording and exporting. It is mainly used in outdoor night shooting, hunting, outdoor adventure, search and rescue, and can be used instead of a sniper scope to complete night hunting.
Interfaces
- Laser range finder, to measure the distance from the target;
- Laser red dot for fast positioning of targets at close range;
- The objective lens dust cover, to prevent dust from entering the objective lens and affecting the imaging effect;
- IR illuminator for observation at night to make the image clearer;
- Picatinny rails, used for the installation of night vision scope;
- Lock nut, to tighten clockwise when the Picatinny rail is loaded into the ๏ฌrearm rail.
- Eyepiece, observe the imaging on the OLED screen;
- Battery holder
- TF Card slot / HDMI high-definition interface/ Type-C charging interface;
- Paddle, to assist in adjusting the focus of the objective;
- Eyepiece lens focusing rotation ring;
- Objective lens focusing adjustment ring๏ผ
- Picatinny rails, used for the installation of another IR illuminator;
- Power button, power on/off the device;
- Zoom (+)/Zoom (-)/Black & White/Color Mode Switch/Downward select;
- Menu/Photo/Rightward adjustment of zeroing;
- Leftward adjustment of zeroing/Ranging button/laser red dot switch;
- IR illuminator / WiFi Switch/Upward select;
- OK button / Video.
Working principle
The TR-IR-LRF NV501 digital night vision scope collects external light through the objective lens, and then converts the optical signal into electrical signal through the digital CMOS sensor module. This signal is then transmitted to the CPU chipset for processing in the format of MIPI signals. Finally, the electrical signal is transmitted to the OLED screen, allowing users to view the image on the OLED screen on the eyepiece.
The TR-IR-LRF NV501 features a powerful high-brightness dimmable IR illuminator that helps to image object clearly and display on the OLED screen in low light and total darkness scenery. The OLED display screen has high resolution and adjustable brightness. The image display adopts digital zoom, and the displayed image can be magni๏ฌed by 2x, 3x, 4x, and 5x (optional).
The infrared laser ranging module emits a very thin laser beam to the target during operation, and the photoelectric element receives the laser beam re๏ฌected by the target. The timer measures the time from the launch to the reception of the laser beam, and calculates the distance from the observer to the target. Finally, it is displayed on the OLED screen.
Installation Instructions
Battery Installation
First screw the locking slotted screw of the battery cover to a horizontal position. Then open the battery cover and put in one 3.7V 18650 Li-ion battery with a rated voltage of 3.7V. Align the positive and negative poles, install them, and tighten the battery cover.
Adjustments
After the battery is installed, first adjust the diopter of the eyepiece, rotate eyepiece lens focusing adjustment ring until the four-corner text icon on the screen is clearly displayed (no need to see the image clearly), and then adjust the objective lens focusing ring until the target can be seen clearly
Calibration
TR-IR-LRF NV501 is calibrated by the “freeze” method. And the night vision scope should be calibrated according to the following methods at working temperature.
โ . Fix the scope (night vision scope) on the weapon, set a target at a distance, such as a cross target ring; adjust the scope according to the debugging instructions in point 2;
โ ก. Press the menu button, select the zeroing menu, press the OK button to enter the secondary menu. Press the OK button to select any group in the pop-up menu Zeroing A/Zeroing B/Zeroing C. In the pop-up menu, select the 100m section to enter zeroing interface.
โ ข. A reticle will be displayed in the center of the screen.
- Shoot at the bullseye with the center of the reticle, then keep the ๏ฌrearm still, short press the OK button to freeze the screen;
- Observe the location of the actual impact point. lf the impact point does not coincide with the aiming point (the center point of the reticle)๏ผ
Press the upward or downward button to move the reticle up and down in the Y coordinate direction, and press the Leftward and Rightward button to move the reticle left and right in the X coordinate direction respectively until the center of the cross-sight coincides with the impact point, and then press the OK button to return to the calibration interface; - Use the center position of the reticle to shoot at the bullseye again, if the landing point coincides with the bullseye of the reticle, it means that the calibration gun is completed, then press and hold the OK button to pop up the “XY/Reset/Exit” menu, press the downward button to select the “Exit” option, then press the OK button to return to the distance selection interface, then press the OK button to select other distances, and repeat steps 1-2 until the impact point coincides with the center of the reticle;
- After the 100m/200m/300m data is saved, press the home button to return to the “Zeroing A”, “Zeroing B”, “Zeroing C” interface, press the downward button to select other groups, and repeat steps 1-3 until all the required data calibration is completed.
Quick Start Guide
Package Contents
- TR-IR-LRF NV501: 1pc
- USB Type-C data & power cable: 1pc
- User Manual: 1pc
- Warranty Card: 1pc
- Battery Charging Stand: 1pc
- Simplified Operation Guide: 1pc
- Mounting Rail: 1pc
- Rail Screw: 4pcs
- Battery Cover Seals: 1pc
- Screwdriver: 1pc
- Velvet Pouch:1pc
(1) Turn On/Off
Long press โ
โ button (โฅ1s) to turn on/off, and the power indicator is on.
(2) Eyepiece Lens Focusing
Eyepiece lens focusing, also known as diopter adjustment, aims to enable users with different eyesight to clearly see the text icons on the screen. Turn the eyepiece lens focusing ring until the on-screen icon is clearly visible.
Note: just make sure that you can see clearly the icons on the screen, not the image inside the screen. If the objective lens is not properly adjusted, the image may be not clear. The same person only needs to adjust one eye once.
(3) Objective Lens Focusing
Before focusing the objective lens, please confirm whether the eyepiece lens focusing (diopter) has been completed, aim at the target you want to see, adjust the focusing ring of the objective lens so that the target image can be clearly seen.
(4) Fill Light Adjustment
In black and white mode, you can adjust the level of the fill light by pressing the โ
โ button once, (set IR1-3 and close), and adjust the focusing fill light by rotating and stretching the cover of the fill light.
Applications
- Outdoor night vision, observe animals
- Hunting, Outdoor Adventure, Search and Rescue
- Use with gun sniper scope for night hunting
| Model | TR-IR-LRF NV501 | |
| Product Name | Digital Day & Night Vision Scope | |
| Power Supply | Power Supply Mode | One 3.7V Li-ion battery |
| Voltage Range | 3.5-4.2V | |
| Power Consumption | 1.8W | |
| Working Time with Battery | โค8h | |
| Objective Lens Parameters | Magnification | 3.5x |
| Pixel | 5M | |
| Focal Length | 35mm (fixed focus), manual focus | |
| Objective Lens Size | ฮฆ35mm(ฮฆ50mm optional) | |
| Field of View | 10.7ยฐร8.0ยฐ | |
| Eyepiece Lens Parameters | Entrance Pupil Diameter | 6mm |
| Magnification Power | 14x | |
| Eye Relief | 50 mm | |
| Operation Control | Manual focus | |
| Focusing Angle Range | -5D~+5D | |
| System Parameters | Sensor Resolution | 1080P (1920ร1080) |
| Internal RAM | 2Gb | |
| Measurement Range | 5~1000m | |
| Video Resolution | 1920×1080@30fps | |
| Image Format | JPG | |
| Display Resolution | 1024×768 | |
| Display Size | OLED0.39โณ | |
| WiFi | 802.11b/g/n | |
| Storage Type | TF Card๏ผSupport 4G~128G๏ผ | |
| Infrared Power/Wavelength | 2W/3W/5W three gears, 850nm/940nm | |
| Geomagnetism | 3-axis Gyroscope | |
| Reticle Shape | Six Types | |
| Picture-in-Picture Enhanced Magnification | Support | |
| Video Transmission | HDMI/WiFi | |
| TYPE-C Interface | Battery Charge and Data Transfer | |
| Language | Chinese / English / Spanish / Portuguese / French / German / Italian / Polish / Turkish / Russian | |
| Mounting Rails | Size | Picatinny rails๏ผ20mm/21mm |
| Reliability | Mean Time Between Failures | ๏ผ50000h |
| Mechanical Properties | Dimensions (L*W*H) | 191mmร94mmร50mm |
| Housing | Plastic & Aluminium Alloy | |
| Body Color | Black | |
| Net Weight | โ560g | |
| Working Environment | Operating Temperature | -20โ~50โ |
| Storage Temperature | -30โ~75โ | |
